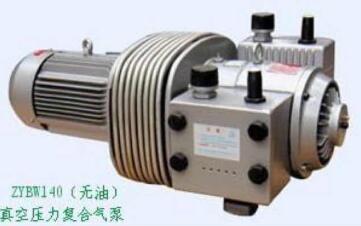

ZYBW...B型真空压力复合气泵
气泵必须放置在清洁，通风良好环境的温度40℃以下安装时必须平稳。
使用前必须检查运输过程中是否有零件损坏、松动现象，并及时排除，严禁向泵体内加油。
启动电机后应检查旋转方向是否与转向标牌一致。
性能曲线
技术规格及参数
| Item/Type | ZYBW100B | ZYBW140B | ZYBW160B | |
| Unit | | | ||
| Capacity | m3/h | 100 | 140 | 160 |
| Rated Vacuum | kPa | -60 | -60 | -60 |
| Rated Pressure | kPa | 60 | 60 | 60 |
| Motor Rating | kW | 5.5 | 5.5 | 7.5 |
| Motor Speed | r/min | 1420 | 1420 | 1420 |
| Noise level | dB(A) | 82 | 84 | 85 |
| Dia.of connecting pipe | mm | 42 | 42 | 42 |
| Net Weight | kg | 162 | 164 | 168 |
| Gross Weight | kg | 175 | 180 | 185 |
| Pump Size | mm | 920x487x372 | 920x487x372 | 950x487x372 |
| Package Size | mm | 1020x620x570 | 1020x620x570 | 1060x620x570 |
气泵分解图零配件序号及名称
| 序号 | Parts Name | 零件名称 | 序号 | Parts Name | 零件名称 |
| 1 | Cylinder | 泵体 | 39 | Filter cover | 气包盖 |
| 2 | Rotor | 转子 | 40 | Knob | 旋钮 |
| 3 | Blade | 滑片 | 41 | Seal ring | 垫片 |
| 4 | End cover | 端盖 | 42 | Spring | 宝塔簧 |
| 5 | Ring | 轴承调整垫 | 44 | Gasket | 垫片 |
| 6 | Cover | 盖 | 45 | Frame | 补气气包 |
| 7 | Roller bearing | 轴承 | 46 | Gasket | 垫片 |
| 8 | Nut | 圆螺母 | 47 | Cover | 补气气包盖 |
| 9 | Seal ring | 密封圈 | 48 | Exhaust box | 压力气包 |
| 10 | Bearing cover | 轴承盖 | 49 | Cartridge | 滤芯 |
| 11 | Security ring | 卡簧 | 50 | Gasket | 垫片 |
| 12 | Cover | 轴承挡圈 | 51 | Exhaust box cover | 压力气包盖 |
| 13 | Roller bearing | 轴承 | 52 | Screw | 螺钉 |
| 14 | Tolerance shim | 波形簧 | 52 | Screwl | 螺钉 |
| 15 | Bearing cover | 轴承盖 | 55 | Fan | 风扇 |
| 16 | Grease nipple | 加油嘴 | 56 | Fan cover | 风扇罩壳 |
| 17 | Key | 键 | 57 | After vooler | 冷却管 |
| 18 | Plug | 螺丝 | 58 | Gasket | 垫片 |
| 19 | Pipe | 油管 | 59 | End cover | 端盖 |
| 20 | Hollow screw | 油管螺丝 | 60 | Disc | 弹簧垫片 |
| 21 | Seal ring | 紫铜垫片 | 61 | Pipe clamp | 隔垫 |
| 22 | Adapter ring | 调整垫 | 64 | Motor | 电机 |
| 23 | Gasket | 垫片 | 65 | Motorflange | 电机架 |
| 26 | Gasket | 垫片 | 66 | Coupling | 电机联轴节 |
| 27 | Filter housing | 真空气包 | 67 | Threaded pin | 锁紧螺丝 |
| 28 | Threaded pin | 双头螺杆 | 68 | Circlip | 卡簧 |
| 29 | Shaft screw | 螺杆 | 69 | Coupling | 转子联轴节 |
| 30 | Gasket | 垫片 | 70 | Bolt | 柱销 |
| 31 | Gasket | 垫片 | 71 | Distance ring | 垫片 |
| 32 | Filter base | 过滤器座 | 72 | Coupling rubber | 弹性圈 |
| 33 | Gasket | 过滤器座垫 | 73 | Circlip | 卡簧 |
| 33 | Gasket | 垫片 | 74 | Foot | 底座 |
| 34 | Cartridge | 滤芯 | 75 | Rubber foot | 橡胶地脚 |
| 35 | Filter base | 过滤器座垫 | 76 | Vacuum regulating valve | 真空调节阀 |
| 36 | Gasket | 垫片 | 77 | Pressure regulation value | 压力调节阀 |
| 37 | Cartridge | 滤芯 | 78 | Seal ring | 垫片 |
| 38 | Gasket | 气包盖垫 | Type | CLFT101DV， ZYBW...B | |
